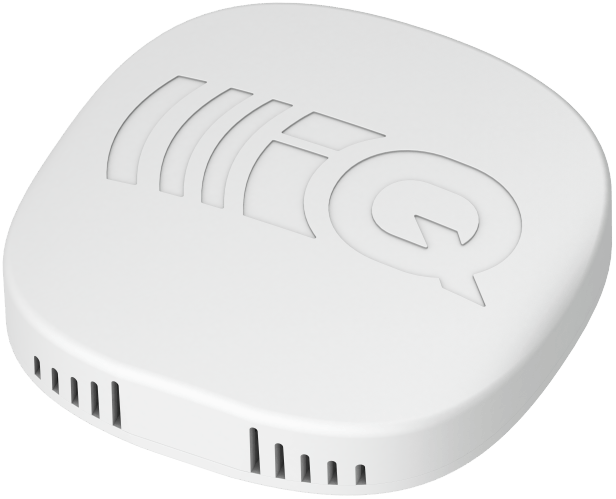

An elegant temperature and relative humidity sensor with a magnetic base intended for indoor use, with IP40 protection.
It works on batteries, with normal use it lasts 3 years without changing the battery.
Measured data are sent at regular intervals and stored in aggregating repeaters. Subsequently, they are collected from the central IoT gateway.
| Parameter | Value |
|---|---|
| Dimension | Body 66 mm x 66 mm x 13.8 mm, base 66 mm x 66 mm x 3.5 mm |
| Weight | Body 38 g, base 12 g |
| Transmission technology | IQRF |
| Temperature | The sensor can be used for measurements in the temperature range: 0 °C to 40 °C (for recommendations, see "Battery life") |
| Relative humidity | 0 - 95 % (without icing and condensation) |
| Range | tens of meters in buildings (depending on the environment and obstacles), up to 350 m in open space,
many times more than the Wi-Fi signal. |
| Battery life | Extra low power, battery operated. Battery lifetime 3 years typical. |
| IP protection | IP40 |
| Power supply | Coin battery CR2450, 3 V, 550 mAh, non-rechargeable, replaceable. |
| RF band | IQRF 868 MHz (optionally 916 MHz) |
The sensor comes in an elegant box with a magnetic base.
Up to 350 m in open space, tens of meters in buildings. Compared to the Wi-Fi signal, it is many times more.
Devices using IQRF wireless technology can operate in a variety of operating modes, resulting in low power consumption and long life.
Thanks to the battery design, you will save the installation of long and expensive cables, you will not have to make any interventions in the plaster or install the cover strips.
The temperature sensor is factory calibrated, so you will get comparable and correct temperature measurement results from different sensors.
Thanks to the beaming method, the device significantly saves energy.
With normal use, you won't need to change the battery before 3 years.
