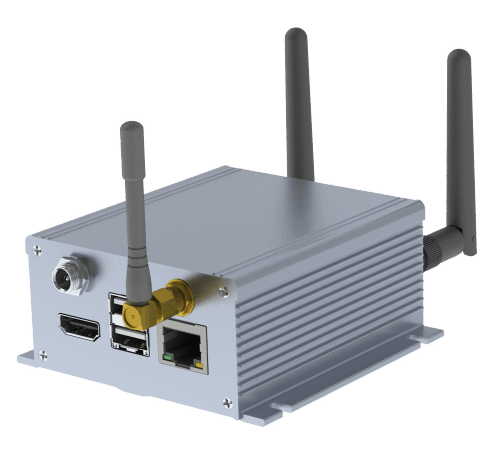

The industrial gateway is the center of the IQRF network.
It is a durable device with IP40 protection, which ensures the operation of even large IQRF networks.
Connection to the computer network is provided via Ethernet.
You can operate a wide variety of sensors, actuators, and repeaters using IQRF wireless technology in the network.
The gateway runs software and services that you can configure.
In the scheduler, you can set up regular readings of measured values, visualize data, or set up regular alerts and reports.
You can connect the gateway to a WAN network and cloud services to extend its overall functionality.
Warning: Only use the gateway with the supplied power supply.
Parameter | Value |
---|---|
Dimension | 90 x 180 x 150 mm (outline dimensions including antennas) |
Weight | 270 g |
Transmission technology | IQRF/Ethernet 10,100,1000 Mb/s, WiFi 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac |
RF band | IQRF 868 MHz (optionally 916 MHz) |
Range | tens of meters in buildings (depending on the environment and obstacles), up to 400 m in open space,
many times more than the Wi-Fi signal. |
Compute module | Raspberry Pi CM4-IO-BASE-A , Linux based |
Memories | For CM4: eMCC Flash 16 GB, RAM 1 GB. For IQRF coprocessor: SRAM 64 KB. |
Power supply | External adapter 5 V DC, 3 A. Connected via cable with Jack 5.5/2.1 mm connector,
short circuit proof, double separated (SELV). Included in the delivery. Only the power adapter supplied with the device must be used! |
Temperature | Gateway -20 °C to +80 °C operating, storage -20 °C to +40 °C,
recommended storage +10 °C to +30 °C. Power adapter 0 °C to +40 °C. |
Relative humidity | 0% - 90%, non-condensing |
Ingress protection | IP40 |
LED | 2 dual color (red, green) for gateway status and IQMESH Coordinator status |
